The Ease 100 is a compact heat recovery ventilation (HRV) unit. It is available in three versions: a central ventilation unit for ceiling mounting, a semi-central ventilation unit for recessed installation in the wall and a decentral ventilation unit for installation on the wall. The compact dimensions, flexible connection options and integrated enthalpy exchanger make the Ease 100 easy to install and suitable for both new projects and renovations.

Ease 100 central ceiling model

With a capacity of 80 m³/h, this space-saving central version with an enthalpy exchanger is suitable for installation on the ceiling or above a suspended ceiling. This version has three Ø75 mm air supply ports and three Ø75 mm air exhaust ports. It is an excellent choice where there is limited space on the wall. This Ease 100 can be installed on the ceiling of a storage room or hall, including in existing buildings.

https://www.brinkclimatesystems.nl/storage/ISH/Ease-100-plafond-2.png
https://www.brinkclimatesystems.nl/storage/ISH/Ease-100-inbouw-en.jpg

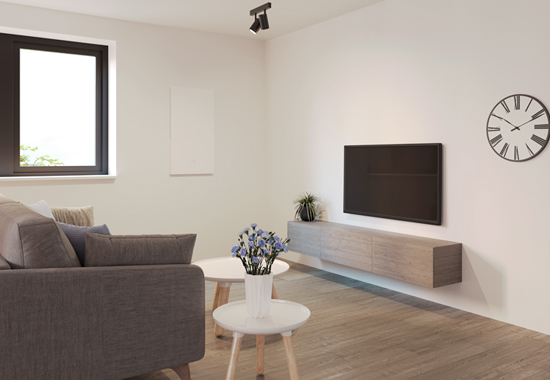

Ease 100 semi-central recessed model

The semi-central version with an enthalpy exchanger and a capacity of 80 m³/h, is designed for recessed installation for example in a living room. This recessed version of the Ease 100 can also be connected to additional rooms, such as a bathroom and/or bedroom, as the unit has four Ø75 mm ports for connection to the Air Excellent System. If additional ducts are impossible or undesirable, an indoor mixfan can also be installed between the living room and bedroom of two-room apartments. Installation is simple thanks to the mounting frame for recessed fitting in the wall. The frame is installed during the shell construction phase. This Ease 100 is particularly suitable for student accommodation and assisted living facilities.

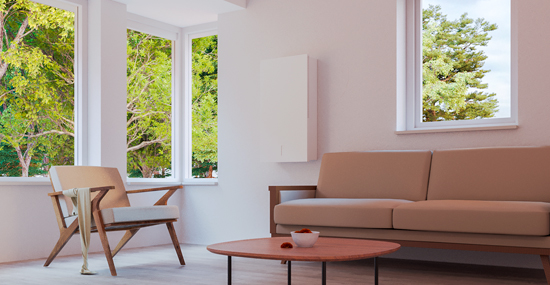

Ease 100 decentral wall-mounted model

The decentral wall-mounted model with heat recovery and an enthalpy exchanger has a capacity of 60 m3/h and is specially designed for independent spaces where a duct system is not possible. The unit is quick and easy to mount on the wall. The ventilation air is supplied and discharged straight through the exterior wall. This makes this version ideal for new and existing homes, including student accommodation and assisted living facilities without a private bathroom.

https://www.brinkclimatesystems.nl/storage/ISH/Ease-100-opbouw.jpg

Versatility and comfort

The three versions of the Ease 100 offer flexible ventilation solutions. From new-build homes and renovations of compact homes to improving the indoor air quality, there’s an Ease 100 for every situation. All versions of the Ease 100 are supplied with an enthalpy exchanger as standard. As well as ensuring a healthy moisture balance and high comfort level, the enthalpy exchanger also simplifies installation, as no condensate discharge is needed.

WHY CHOOSE THE Ease 100?

  • Ventilation with heat recovery for compact homes
  • Flexibility with three versions: ceiling, recessed and wall mounted
  • Supplied with an enthalpy exchanger as standard: no condensate discharge needed
  • Easy to install
  • Compact dimensions

AVAILABLE SOON STAY INFORMED!

COMPACT VENTILATION UNITS IN THREE VARIANTS FOR SMALLER HOMES
